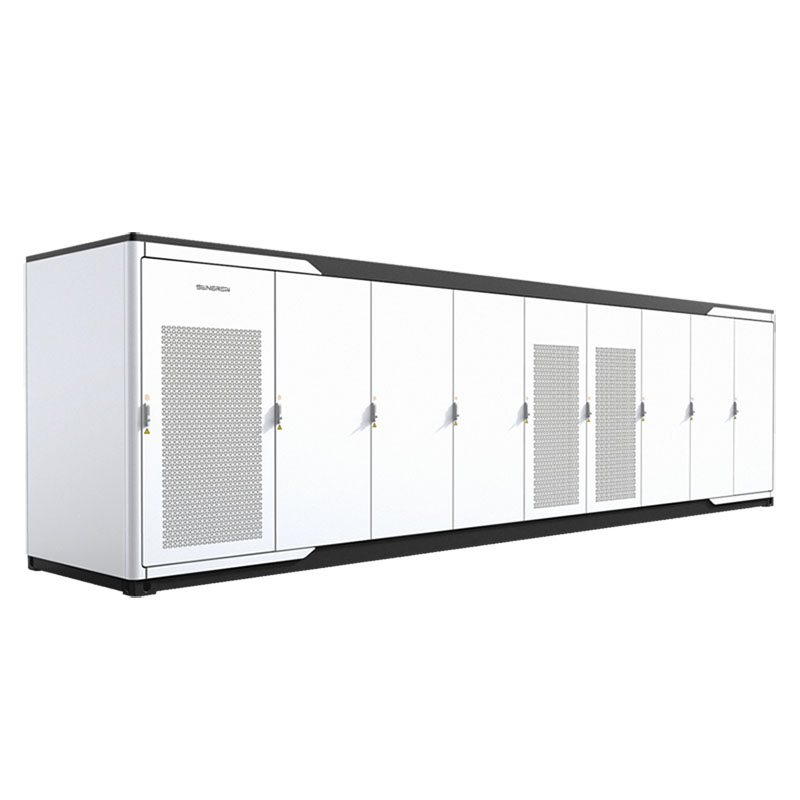

ST2236UX-ST2752UX Liquid Cooling Energy Storage System
ST2236UX-ST2752UX Liquid Cooling Energy Storage System

ST2236UX-ST2752UX Liquid Cooling Energy Storage System

PowerTitan series energy storage system ST2236UX/ST2752UX, plug-and-play modular ESS with rapid deployment, multi-tier DC safety protection (arc suppression/fault isolation), scalable IP54/C5-rated design, and cloud-based predictive maintenance.

CATEGORY:
Description

PowerTitan Series ST2236UX/ST2752UX

COST EFFICIENCY

Streamlined energy storage solution (ESS) for simplified logistics and maintenance.

Factory-integrated modular design eliminates on-site battery handling.

Rapid deployment (<8 hours): Drop-on-pad installation with turnkey commissioning (foundation-ready design + plug-and-play electrical interfaces).

SAFETY & RELIABILITY

Active Fault Current Suppression (AFCS) via integrated DC/DC converters.

Multi-stage DC circuit protection (instantaneous trip mechanisms + arc-flash mitigation).

Fail-safe architecture with redundant, independently operational battery protection layers.

EFFICIENCY & FLEXIBILITY

AI-optimized liquid cooling enhances energy efficiency and extends battery lifecycle by 20%.

Scalable architecture supports parallel clustering and hot-swappable capacity expansion.

IP54-rated outdoor enclosures with optional C5-M anti-corrosion coating for harsh environments.

INTELLIGENT OPERATIONS

Real-time system telemetry with predictive fault pre-alarm and root-cause diagnostics.

Embedded performance analytics for state-of-health monitoring and historical data logging.


Type DesignationST2236UX

Battery Data

  • Cell typeLFP
  • Battery capacity (BOL)2236 kWh
  • Battery voltage range1123 ~ 1500 V

General Data

  • Dimensions of battery unit (W * H * D)9340 * 2600 * 1730 mm
  • Weight of battery unit24T
  • Degree of protectionIP54
  • Operating temperature range-30 to 50 ℃ (> 45 ℃ derating)
  • Relative humidity0 ~ 95 % (non-condensing)
  • Max. working altitude3000 m
  • Cooling concept of battery chamberLiquid cooling
  • Fire safety standard / OptionalFused sprinkler heads, NFPA 69 explosion prevention and ventillation IDLH gases
  • Communication interfacesRS485, Ethernet
  • Communication protocolsModbus RTU, Modbus TCP
  • ComplianceCE, IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 62619

1 HOURS APPLICATION-ST2236UX*2-4000UD-MV

  • BOL kWh (DC)4,472 kWh
  • ST2236UX Quantity2
  • PCS ModelSC4000UD-MV

Grid Connection Data

  • Max.THD of current< 3 % (at nominal power)
  • DC component< 0.5 % (at nominal power)
  • Power factor> 0.99 (at nominal power)
  • Adjustable power factor1.0 leading ~ 1.0 lagging
  • Nominal grid frequency50 / 60 Hz
  • Grid frequency range45 ~ 55 Hz / 55 ~ 65 Hz

Transformer

  • Transformer rated power4,000 kVA
  • LV / MV voltage0.8 kV / 33 kV
  • Transformer cooling typeONAN (Oil Natural Air Natural)
  • Oil typeMineral oil (PCB free) or degradable oil on request

Type DesignationST2752UX-US

Battery Data

  • Cell typeLFP
  • Battery capacity (BOL)2752 kWh
  • Battery voltage range1160 ~ 1500 V

General Data

  • Dimensions of battery unit (W * H * D)9340 * 2600 * 1730 mm
  • Weight of battery unit26.4T
  • Degree of protectionIP 54/Type 3R
  • Operating temperature range-30 to 50 ℃ (> 45 ℃ derating)
  • Relative humidity0 ~ 95 % (non-condensing)
  • Max. working altitude3000 m
  • Cooling concept of battery chamberLiquid cooling
  • Fire safetyused sprinkler heads, NFPA 69 explosion prevention and ventillation IDLH gases
  • Communication interfacesRS485, Ethernet
  • Communication protocolsModbus RTU, Modbus TCP
  • ComplianceUL 9540,UL 9540A/NFPA 855

2 HOURS APPLICATION-ST2752UX*4-5000UD-MV-US

  • BOL kWh(DC/AC LV Side)11,008kWh DC/10,379kWh AC
  • ST2752UX Quantity4
  • PCS ModelSC5000UD-MV-US

4 HOURS APPLICATION-ST2752UX*8-5000UD-MV-US

  • BOL kWh(DC/AC LV Side)22,016kWh/21,448kWh
  • ST2752UX Quantity8
  • PCS ModelSC5000UD-MV-US

Grid Connection Data

  • Max.THD of current< 3 % (at nominal power)
  • DC component< 0.5 % (at nominal power)
  • Power factor> 0.99 (at nominal power)
  • Adjustable power factor1.0 leading ~ 1.0 lagging
  • Nominal grid frequency60 Hz
  • Grid frequency range55 ~ 65 Hz

Transformer

  • Transformer rated power5,000 kVA
  • LV / MV voltage0.9 kV / 34.5 kV
  • Transformer cooling typeONAN (Oil Natural Air Natural)
  • Oil typeMineral oil (PCB free) or degradable oil on request
